XQE SENSORS & CAMERA COMPONENTS
SIONYX offers a portfolio of high-performance image sensors and camera components to satisfy requirements in a wide range of low light vision applications. XQE sensor cores deliver best-in-class NIR sensitivity of up to 10X compared to standard CMOS. XQE sensors/components operate at the lowest power requirements with field-proven reliability under demanding environmental conditions. SIONYX embraces challenging customizations to meet customer needs and deliver high-volume production through design-prototyping collaboration. Performance differentiation of embedded vision systems starts with XQE sensors and camera components!
Innovate with SIONYX!
IMAGE SENSORS

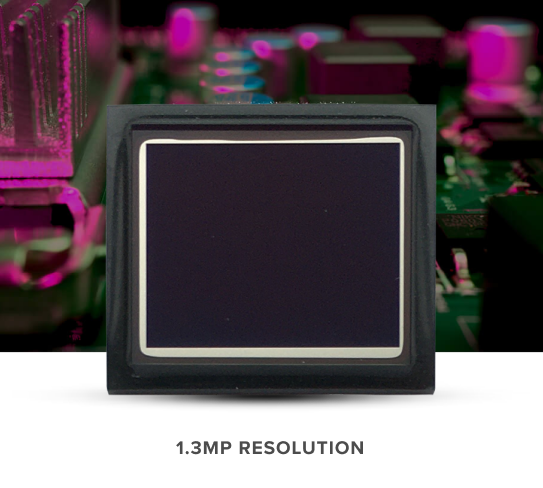

XQE-1350 (MONO) - XQE-1351 (COLOR)
The SIONYX XQE-1350 / 1351 image sensor features unmatched ultra low light imaging technology and breakthrough sensitivity in the 800nm - 1,100nm range. This sensor enables digital fusion capability, high QE detection for instrument-industrial vision, and all use cases of traditional I2 tube-based night vision.
CLICK FOR DATASHEET
XQE-9950 (MONO) - XQE-9951 (COLOR)
The SIONYX XQE-9950 / 9951 image sensor features ultra low light imaging and breakthrough sensitivity in the 800nm – 1,100nm range. This sensor enables digital fusion capability, high QE detection for instrument-industrial vision, and all use cases of traditional i2 tube-based night vision.
CLICK FOR DATASHEET
APPLICATIONS
NIGHT VISION:
i. Weapon Sites / Targeting
ii. Day-Night Surveillance
iii. Vehicle Situation Awareness
iv. UAV & Robotic Navigation
v. Search & Rescue
vi. See Spot
INDUSTRIAL/COMMERCIAL:
i. Industrial - Machine Vision
ii. Process QC / Material Sorting
iii. Silicon Characterization
iv. Hyperspectral / Multispectral
v. Laser beam profiling
vi. Vehicle Cabin Monitoring (ADAS)
SCIENTIFIC / MEDICAL:
i. Fluorescence Imaging
ii. QD Marker detection
iii. Light Sheet Microscopy
iv. Spectroscopy
v. Fundus Photography
vi. Guided Surgery
vii. Medical Diagnostics
CAMERA CORE EVALUATION KIT
The SIONYX XRB-1350-PDK / XRB-1351-PDK product development kit provides engineers and scientists a fully integrated camera core with flexible lens options to evaluate 2nd generation Black Silicon CMOS extreme low light technology. In addition to providing best-in-class near infrared sensitivity, the sensor delivers unassisted 0.5 mLux moonless night performance with high resolution. The image signal processor (ISP) executes a real-time image pipeline with auto exposure, contrast, gain and tone mapping/gamma algorithms. The kit is designed to facilitate all elements of OEM component integration for end applications that demand the smallest size, weight, and power requirements (SWAP) for leading edge digital night vision. The SIONYX XRB-1350 / XRB-1351 camera core is field-proven and reliable in extreme-use environments where reliability is mission critical.
CLICK FOR DATASHEET
PRODUCTION CAMERA CORE
The SIONYX XRB-1350 / 1351 camera core provides a fully integrated embedded vision ready component that features our Gen2 extreme low light imaging sensor and FPGA integrated onto a PCB with easy user connectivity via flex ribbon cable. This module comes fully loaded with SIONYX’s proprietary and fully optimized image processing algorithms to ensure the maximum capability in user performance results. The FPGA executes a real time image pipeline with auto exposure, contrast, gain and tone mapping/gamma algorithms.
FEATURES + BENEFITS
- 2nd Gen SIONYX low light technology delivers 0.5 mLux performance
- Daytime safe operation is user friendly and ensures long term reliability
- 2D noise reduction for improved image clarity
- MIPI CSI2 output interface for ease of integration in embedded systems
- Serial and I2C control interface for user flexibility
- Unmatched lower power consumption provides longer battery life
- Best Si CMOS QE 700nm - 1100nm enables new applications at low cost
The XRB-1350 / 1351 delivers the industry’s smallest Size, Weight, and Power (SWAP) combination with unprecedented near infrared sensitivity. SIONYX enables unassisted night vision imaging and detection in the 700nm – 1,100 nm range to advance industrial vision at a low price point.
SIONYX offers an optional C-mount lens interface designed for use with XRB camera cores.
- XRB-1350 monochrome
- XRB-1350S monochrome / commercial
- XRB-1351 color
- XRB-1351S color / commercial
PRODUCTION CAMERA MODULE LENSED
SIONYX offers standardized camera core components and camera modules with a variety of lens options to meet our clients’ requirements. The standard camera modules take the integration of Sionyx’s camera core to the next step to further simplify client integration effort and speed to market. The camera modules are available in two formats; Sionyx provides a camera core with integrated lens or a fully packaged camera core with lens in an environmental sealed unit. These modules may be customized through software or hardware optimization to address specific volume user product needs.
FEATURES + BENEFITS
- 2nd Gen SIONYX low light technology delivers 0.5 mLux performance
- Packaged camera core with lens option is daytime safe with high reliability
- 2D noise reduction for improved image clarity
- MIPI CSI2 output interface for ease of integration in embedded systems
- Serial and I2C control interface for user flexibility
- Unmatched lower power consumption provides longer battery life
- Best Si CMOS QE 700nm - 1100nm enables new applications at low cost
CAMERA MODULE OPTIONS:
- XRB-1350-V65 = monochrome enclosed camera module 65 degrees
- XRB-1350-V57* = monochrome enclosed camera module 57 degrees
- XRB-1351-V65 = color enclosed camera module 65 degrees
- XRB-1351-V57* = color enclosed camera module 57 degrees
- XRB-1350-S65 = monochrome lensed camera module 65 degrees
- XRB-1351-S65 = color lensed camera module 65 degrees
- XRB-1350-V65S = monochrome enclosed camera module 65 degrees, commercial
- XRB-1351-V65S = color enclosed camera module 65 degrees, commercial
Ultra low-light camera featuring the 1.3MP SXGA XQE-1350 type CMOS sensor.
CLICK FOR DATASHEET
