OPSIN BUNDLE (OPSIN + Illuminator Kit)

$1,895.00
Contact Corporate Sales

Your tactical toolbox just stepped into the future.

Inspired by the U.S. DoD’s desire to integrate digital night vision into surveillance and support low-light operations, OPSIN is changing the night vision game. It brings next-level innovation to the traditional night vision market with our proprietary XQE-1350 Black Silicon CMOS sensor. OPSIN’s technology provides unmatched color low-light capability plus immersive digital display, recording, and navigation features that make operations more precise, efficient, and informative. Heightened visual detail and data collection inform tactical decisions and refine intelligence – advanced capabilities you won’t find with traditional night vision. Plus, with a jurisdiction and classification of EAR99, OPSIN is available globally with minimal export restrictions.

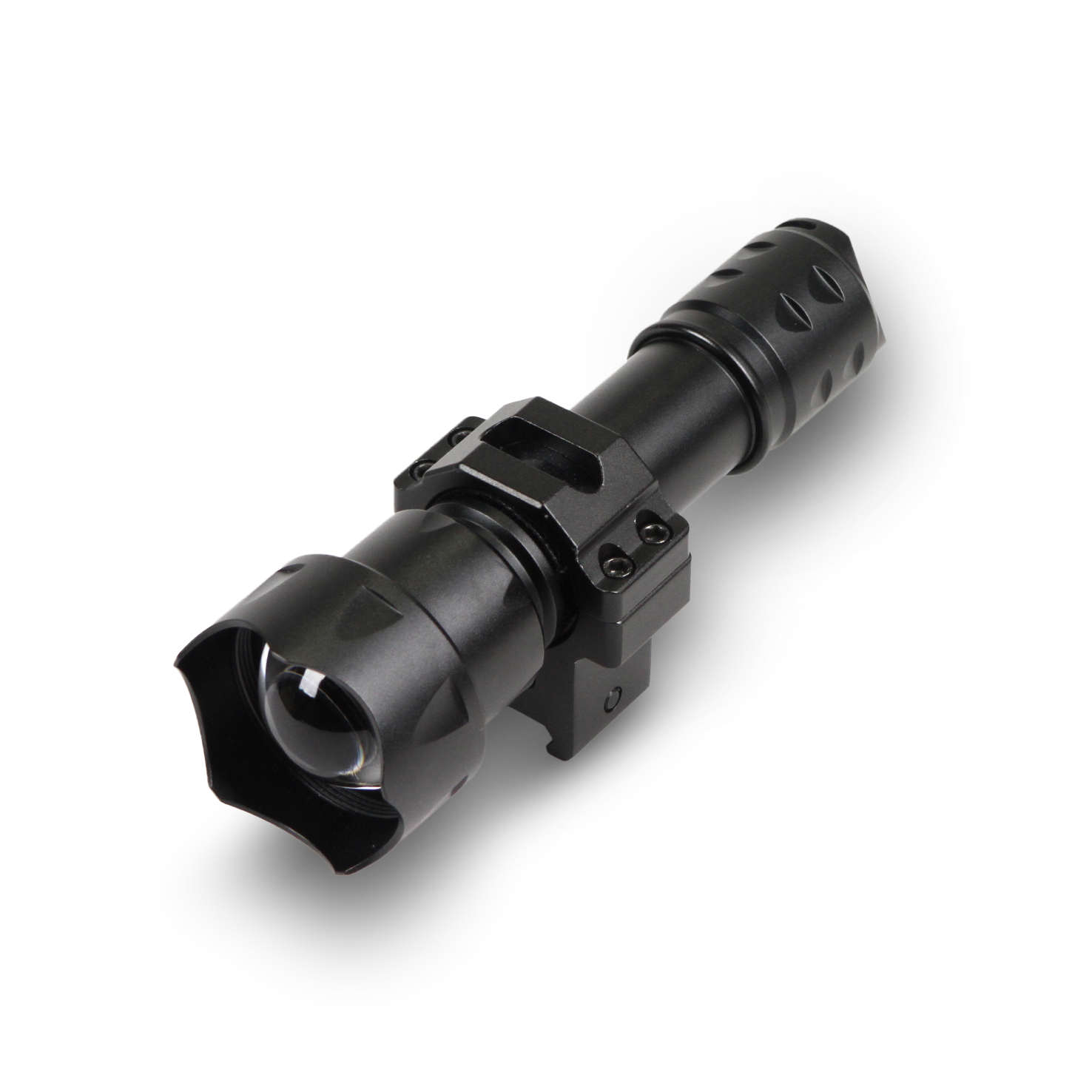

The SIONYX IR Illuminator Kit includes all the necessary tools to optimize the use and performance of the Aurora family of cameras. The key component is the 940nm, 5W LED infrared illuminator. This IR torch is tuned specifically for the Aurora sensor for the perfect balance of color and brightness to identify targets out to 150 meters and to recognize targets well beyond.

The IR Illuminator Kit offers multiple mounting configurations:
The included 25mm flashlight mount attaches the IR torch to any standard 1913 Picatinny rail. For flexibility and expanded use, SIONYX also developed a custom Pic rail with a 1/4-20mm screw to thread into the bottom of Aurora cameras, enabling you to attach the IR torch directly to Aurora.

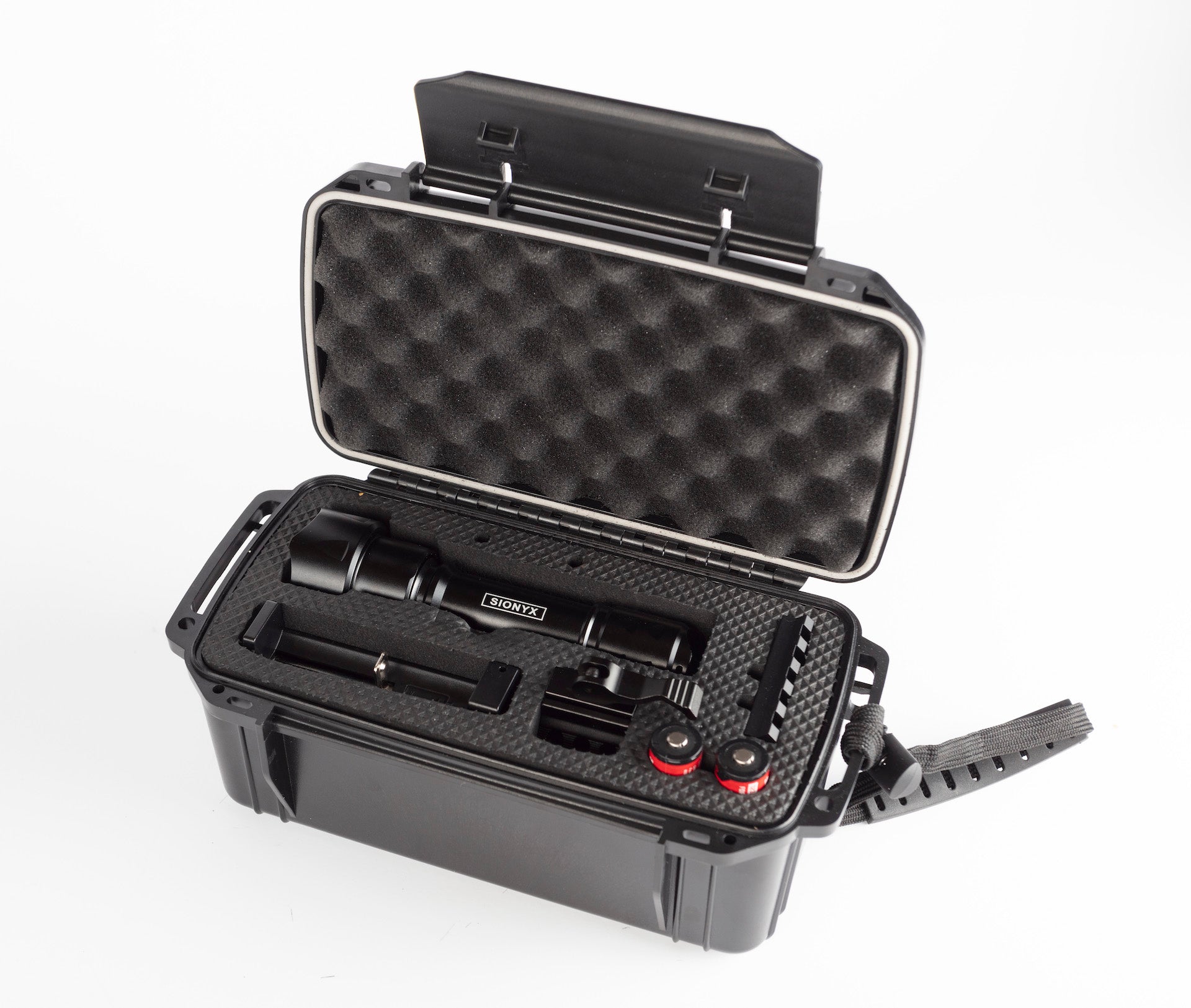

The IR torch runs on a single 18650 rechargeable lithium battery for 2 hours of continuous run time. The kit includes an additional battery and USB-charger to keep you running through the night. All these items are packaged in a weather-tight hard case with custom die-cut foam.

WHAT’S IN THE BOX

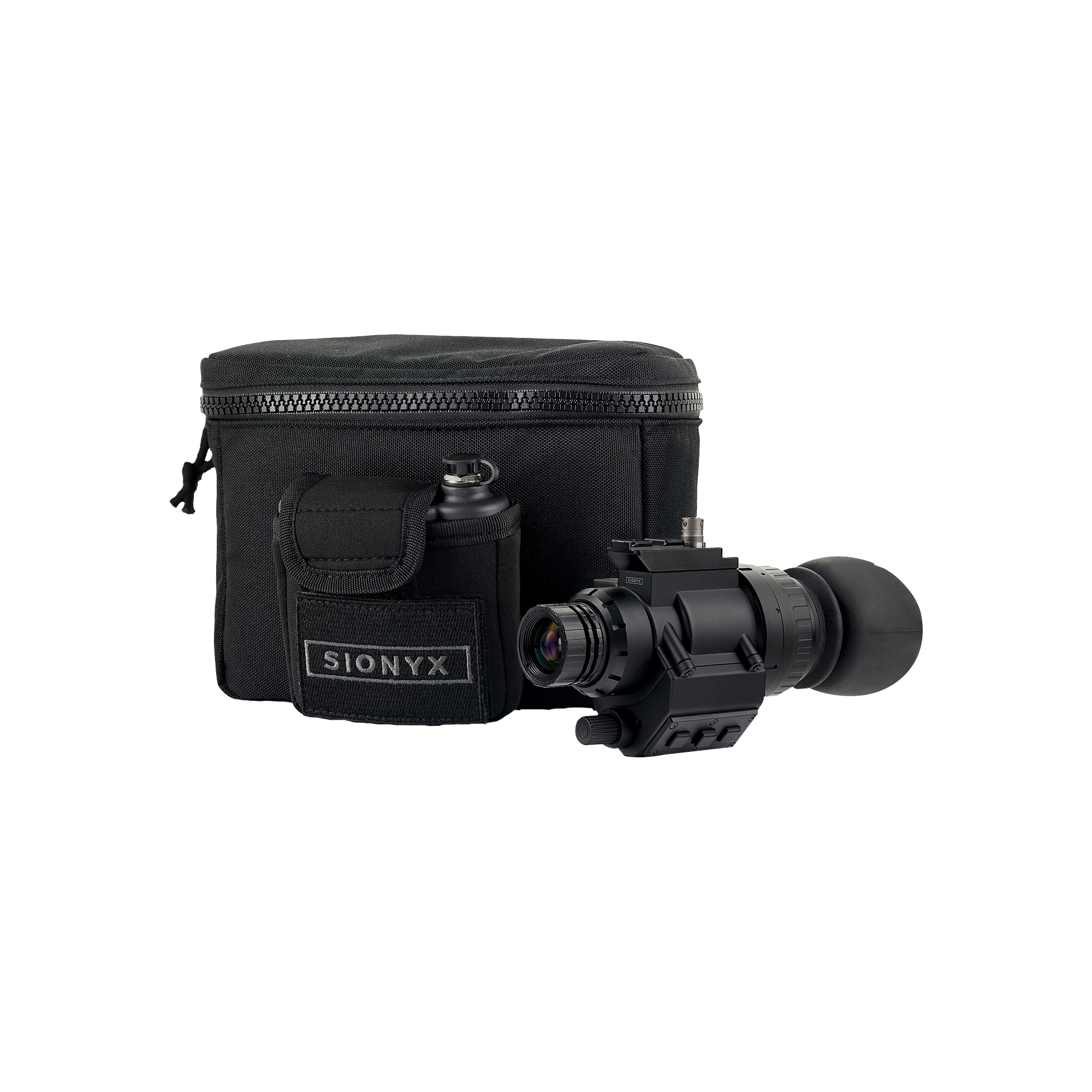

OPSIN

  • OPSIN Camera
  • Eye Cup
  • Swing Arm
  • Battery Pack (>16 HRS Operation Time)
  • Canvas Pouch
  • Micro SD Card

Illuminator Kit

  • 940nm 5W LED Illuminator
  • Picatinny 1/4-20 Threaded Rail
  • 25mm Flashlight Mount for Standard 1913 Picatinny Rails
  • (2) 18650 Batteries
  • Battery Charger & USB Cable
FEATURES
  • <1 millilux moonless starlight night vision
  • Extra-large 1920x1080 HD micro-OLED display with a custom eyepiece for 25mm eye relief
  • 44 degree field of view for maximum situational awareness
  • Photo, video, and audio recording
  • Manual focus of objective lens and diopter
  • Onboard digital magnetic compass and GPS to document and geo-tag location
  • Up to 256GB on-board storage
  • Battery provides up to fourteen hours of operation with a full charge
  • Flexible helmet mounting options with a standard dovetail interface
  • Adjustable and reversible swing arm with quick-release button
  • Exceeds MIL-STD-810G drop test
  • IP67 rated: water-resistant at 1m/30min submersion, vibration/shock, salt/sand
CAMERA

SENSOR TYPE: XQE1350 BSI CMOS

RESOLUTION: 1280 X 1024

FRAME RATE: 30 I 60 I 90 HZ

HORIZONTAL FOV: 45°

VISIBLE SPECTRUM: 400-1200NM

FOCUS RANGE: 0.2M TO INFINITY

LENS: 15MM F/1.3

SYSTEM

SYSTEM LATENCY: < 1 FRAME

DISPLAY: AMOLED 1920 X 1080

DIOPTER ADJUSTMENT: -4 TO +4

EYE RELIEF: 25MM

EXIT PUPIL: 7.5MM

LOCATION SYSTEM: BUILT-IN GPS

ORIENTATION SYSTEM: DIGITAL MAGNETIC COMPASS

WIRELESS COMMUNICATIONS: WIFI + BLUETOOTH

AUDIO: BUILT-IN MICROPHONE

POWER IN: 7.2VDC

STORAGE MEDIA: MICRO SD CARD

STORAGE CAPACITY: UP TO 256GB

ENVIRONMENTAL

INGRESS PROTECTION: IP67

SHOCK & VIBRATION: 2M

OPERATING TEMPERATURE: -20°C TO +55°C

STORAGE TEMPERATURE: -40°C TO +70°C

CAMERA - PHYSICAL

WEIGHT: 301 G [10.6 OZ]

DIMENSIONS: 120 X 80 X 58 MM [ 4.7 X 3.1 X 2.3 IN]

MOUNTING OPTIONS: MINI RAIL

MATERIAL: GLASS REINFORCED POLYCARBONATE

BATTERY PACK

BATTERY CELLS: 4 X 18650 LI-ION

VOLTAGE: 7.2VDC

CAPACITY: 5960MAH | 42.9WH

DIMENSIONS: 97 X 92 X 49 MM [3.8 X 3.6 X 1.9 IN]

WEIGHT: 298G [10.5OZ]

OPERATION TIME [ALL SYSTEM FEATURES ON] UP TO 10 HRS

OPERATION TIME [VIEWING ONLY] UP TO 14 HRS

RANGE PERFORMANCE

CLEAR WEATHER AT 1/4 MOON

DETECT MAN-SIZED TARGET: 150 M

MANUAL AND GUIDES

Product Specifications

User Manual

Quick Start Guide

Regulatory Statement

FIRMWARE

Falcon 2.1.0 (JUL 2024)

  • FW24.2.1_HW2062_WIFI2.4.2_BLE1.1.0
  • Various bug fixes and performance improvements
  • Implemented support for RTC (Real Time Clock)
  • Includes Osprey

Osprey 2.0.0 (SEPT 2023)

  • FW23.2.1_HW2062_WIFI2.3.9
  • This is a major upgrade of Opsin
  • Enabled SIONYX mobile application connectivity
  • Includes image processing improvements
  • Updated graphical user interface (GUI)
  • New Menu structure
  • Exposure Value (EV) is managed by Front knob potentiometer
  • Additional SD card status messages
  • Added EXIF support in JPG file including: software version, GPS data, image capture data, etc.
  • Add GPS metadata to MP4 video recording (per chapter, not per image)
  • Improved video recording performance

OPSIN Firmware Updates
